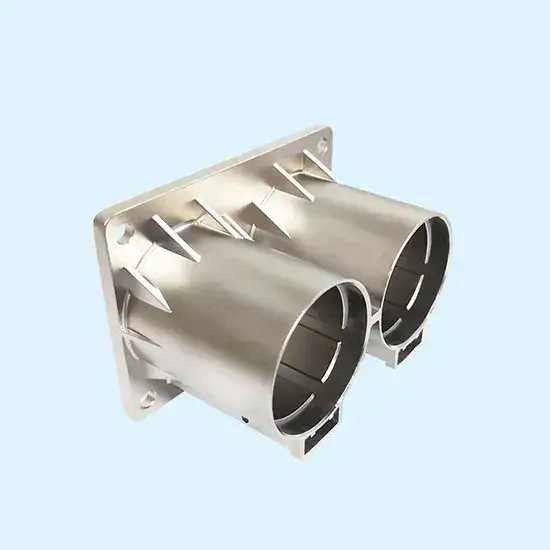

800A High Current EV Connector

800A High Current EV Connector: The High-Power Nexus for Next-Generation Electrification

Introduction: Powering the Electric Future

As the electric vehicle industry rapidly evolves beyond passenger cars to encompass heavy-duty trucks, buses, and high-performance fleets, the demand for faster charging and greater energy throughput has become paramount. The transition to 800V+ architectures and the quest for "refueling-like" charging speeds require a fundamental leap in charging infrastructure. At the heart of this leap lies a critical, yet often overlooked component: the high-current connector. Introducing our 800A High Current EV Connector – a purpose-engineered solution designed to safely and reliably deliver the immense power required to electrify the future, today.

Engineered for Extreme Performance
Our 800A connector is not merely an iteration of existing designs; it is a ground-up re-engineering to meet the rigorous demands of next-generation EV charging.

Unmatched Current Capacity:Rated for a continuous current of 800 Amperes, this connector supports ultra-high-power charging (UHPC) levels exceeding 500 kW and approaching 1 MW when paired with appropriate system voltages (e.g., 1000V). This capability is essential for significantly reducing charging times for large battery packs found in commercial vehicles.

Advanced Thermal Management: Managing immense heat generation is the primary challenge at these power levels. Our connector integrates a sophisticated, multi-path thermal management system. This includes high-conductivity materials, optimized internal geometry for airflow, and strategically placed thermal sensors for real-time monitoring, ensuring stable temperatures and preventing derating during prolonged high-power sessions.

Superior Electromechanical Design:Featuring a contact system crafted from ultra-high-performance copper alloys with advanced silver-plating, the connector minimizes electrical resistance and energy loss. The robust mechanical latch and housing are engineered for exceptional durability, capable of withstanding over 10,000 mating cycles under full load, a critical requirement for public and fleet charging infrastructure.

Enhanced Safety & Intelligence:Safety is paramount. The connector incorporates a full suite of safety features: a fail-safe interlock system that prevents energization when disconnected, advanced liquid cooling interfaces (optional/integrated), and complete IP67/IP6K9K ingress protection against dust and high-pressure water jets. Integrated smart communication pins (CP, PP) and CAN bus connectivity enable seamless vehicle-to-charger (V2C) dialogue for precise control and diagnostics.

Target Applications: Where Power Meets Purpose
This connector is the vital link for the most demanding segments of e-mobility:

1. Heavy-Duty Electric Vehicles:Essential for electric long-haul trucks, mining vehicles, and city buses. These applications require massive, rapid energy transfers during scheduled breaks to maintain operational viability.
2. Public Ultra-Fast Charging Hubs:As the backbone of next-generation highway charging stations, this connector enables "megawatt-class" charging, turning 30-minute stops into meaningful range replenishment for multiple vehicle classes.
3. High-Performance & Fleet Operations:Supports fast turnaround for electric logistics fleets, rental car depots, and high-performance passenger cars utilizing 800V platforms, maximizing asset utilization and minimizing downtime.
4. Marine & Specialized Equipment:Suitable for electrifying ferries, airport ground support equipment, and other off-road machinery where high-power DC charging is required.

Unlocking Operational and Economic Advantages
Adopting the 800A High Current EV Connector translates into tangible benefits across the value chain:

For Vehicle Manufacturers:Enables the design of vehicles capable of accepting ultra-fast charging, a key competitive differentiator and a major selling point for commercial operators focused on total cost of ownership (TCO).
For Charging Network Operators (CPOs):Future-proofs charging hardware investments. Deploying stations with this connector capacity attracts a wider range of EVs, increases revenue potential per session, and positions the network as a leader in cutting-edge technology.
For End-Users (Fleet Managers & Drivers):Dramatically reduces effective charging time, directly translating to increased vehicle uptime, extended daily range, and more flexible operational scheduling. For fleets, this is a critical lever in achieving cost parity with diesel operations.

Commitment to Reliability and Standards
Designed in compliance with and exceeding key international standards (such as IEC 62196, GB/T, and relevant parts of SAE J3105 for high-power applications), our connector ensures interoperability and safety in a global market. Every unit undergoes rigorous stress testing, including high-current cycling, thermal shock, mechanical endurance, and environmental exposure, guaranteeing performance in the harshest real-world conditions, from desert heat to freezing winters.

Conclusion: The Critical Link in the High-Power Chain
The journey towards widespread, practical electrification of transport hinges on overcoming the "charging hurdle." Our 800A High Current EV Connector is more than just a component; it is the critical, high-power nexus that makes megawatt-scale charging a safe, reliable, and commercially viable reality. By enabling the efficient flow of energy at unprecedented levels, we are not just connecting cables; we are connecting the present to a faster, cleaner, and more efficient electric future. This is the connector that powers progress.
