Zinc die casting is a widely adopted manufacturing process that plays a critical role in the production of high-precision, high-volume metal components, particularly in the context of heat-exchanger shell housing. Leveraging the excellent castability, dimensional stability, and strength of zinc alloys, this process supports a wide range of industriesfrom automotive and electronics to medical and consumer goods. Zinc's low melting point (typically around 420450 C) allows for rapid cycle times, minimal energy consumption, and extended tool life, making it particularly cost-effective for complex, thin-walled designs.
Unlike other die-casting materials such as aluminum or magnesium, zinc offers superior surface finish quality and exceptional plating compatibility, which are essential for both functional and aesthetic applications. This article delves into the specific benefits of zinc die casting for heat-exchanger shell housing, highlighting its advantages over other methods.

Core Process DescriptionWhat is Zinc Die Casting?Zinc die casting is a manufacturing process in which molten zinc or zinc alloys are forced under high pressure into reusable molds, known as dies, to create precise metal components. The basic principle involves injecting the molten metal into the die cavity, allowing it to solidify, and then ejecting the finished part. This process can produce parts with tight tolerances, smooth surface finishes, and complex geometries in a relatively short time.

Steps of the Zinc Die Casting ProcessPreparing the Die: The die is cleaned and lubricated to ensure proper part ejection and mold longevity. The mold is then clamped with high pressure to ensure the die remains stable during the casting process.
Injection: Zinc alloys are melted at a temperature around 420450 C and injected into the die cavity at high pressure. This ensures that the molten zinc fills even the smallest cracks and corners within the mold, ensuring a high degree of accuracy in the final product.
Cooling and Ejection: The molten zinc rapidly cools and solidifies in the die cavity, creating a precise, detailed replica of the mold. After solidification, the part is ejected from the mold by mechanical ejection pins.
Trimming: Any excess material, such as flash and sprues, is trimmed off to achieve the final dimensions. Trimming is typically performed using hydraulic presses, CNC deburring systems, or manual deburring tools for intricate geometries.

Common Zinc Alloys for Die CastingSeveral zinc alloys are commonly used for die casting due to their unique properties. The most popular zinc alloys for die casting are:
- Zamak 2, 3, and 7: These alloys offer superior strength, ductility, and dimensional stability.
- ZA-8 and ACuZinc5: These alloys provide enhanced strength and corrosion resistance, making them ideal for harsh environments.
Each alloy has distinct properties that make it suitable for different applications, and the choice of alloy is critical for optimizing the final product's mechanical and physical characteristics.

Key Benefits of Zinc Die Casting for Heat-Exchanger Shell HousingStability and DurabilityOne of the most significant benefits of zinc die casting is its superior dimensional stability and durability. Unlike other materials such as aluminum, which can exhibit warping and dimensional instability, zinc alloys maintain their shape and structure even under high thermal and mechanical stresses. The low melting point and high-dimensional stability of zinc alloys result in parts that are less prone to deformation, ensuring robust heat-exchanger housings that maintain their precise dimensions over time.

Machinability and Surface FinishZinc alloys are highly machinable, allowing for the production of intricate and detailed heat-exchanger shell housings. The excellent machinability of zinc ensures that complex designs and geometries can be easily achieved without sacrificing part quality or surface finish. Additionally, the smooth surface finish of zinc die-cast parts enhances both functional integrity and aesthetic appeal, making them ideal for high-end industrial and HVAC applications.

Cost-EffectivenessZinc die casting is a highly cost-effective process due to its low tooling costs and rapid production cycles. The low melting point of zinc allows for quick solidification rates, reducing energy consumption and shortening cycle times. Furthermore, zinc alloys are relatively inexpensive compared to other metals, making zinc die casting a more economical choice for large-scale manufacturing of heat-exchanger shell housings.

Complex Geometries and Thin WallsZinc die casting excels in producing intricate and complex geometries with precise tolerances. The ability to produce thin-walled shells without additional post-processing makes zinc die casting an ideal choice for fine-tuning heat-exchanger components. The thin-wall capability allows for the efficient thermal transfer properties and enhanced performance of the heat-exchanger, while maintaining structural integrity and strength.

Enhanced Corrosion Resistance and Plating CompatibilityThe inherent corrosion resistance of zinc alloys makes them an excellent choice for heat-exchanger shell housing applications, where exposure to harsh environments is common. Zinc die-cast parts can be readily plated with nickel, chrome, or other materials, enhancing both the aesthetic and functional attributes of the final product. Plating provides an additional layer of protection against corrosion and wear, ensuring long-term durability in industrial settings.

Real-World ApplicationsIn the automotive industry, zinc die-cast heat-exchanger shell housings are widely used due to their strength, dimensional stability, and ease of manufacture. Advanced zinc alloys like Zamak 3 and ZA-8 are preferred for their superior properties and resistance to corrosion. Similarly, in HVAC systems, zinc die casting is ideal for producing lightweight, robust shell housings that can withstand the rigors of industrial environments.

Custom Zinc Die Castings for Industrial UseCustom zinc die castings offer unparalleled versatility and precision for industrial applications. The ability to produce intricate designs with tight tolerances makes zinc die casting ideal for HVAC systems, where intricate geometries and thin walls are necessary for optimal performance. The high dimensional stability of zinc alloys ensures that the parts retain their precise dimensions over time, providing reliable and consistent performance in high-demand environments.

Structural Integrity and LongevityZinc die castings for heat-exchanger shell housings exhibit exceptional structural integrity and longevity due to their superior mechanical properties. The use of advanced alloys like EZAC and ZA-8 ensures that the heat-exchanger housings can withstand the thermal and mechanical stresses of industrial environments, maintaining their shape and functionality over extended periods.

Comparison with Other MaterialsComparison with Aluminum Die CastingWhile aluminum die casting offers some advantages in terms of weight reduction, zinc die casting stands out in terms of dimensional stability, strength, and durability. Aluminum parts are prone to deformation due to high thermal expansion and contraction rates, making them less suitable for high-precision applications. In contrast, zinc die-cast parts maintain their precise dimensions and structural integrity, making them ideal for heat-exchanger shell housing applications.

Comparison with Magnesium Die CastingMagnesium die casting is often favored for its lighter weight, but zinc die casting offers several advantages in terms of strength, corrosion resistance, and ease of manufacturing. Zinc alloys provide superior strength-to-weight ratios, ensuring that heat-exchanger shell housings made from zinc die castings can withstand the mechanical loads and thermal stresses encountered in industrial settings.

Techno-Economic AnalysisFrom a techno-economic perspective, zinc die casting offers several advantages for heat-exchanger shell housing manufacturing. The rapid cycle times and low energy consumption of zinc die casting reduce the overall production costs, making it a more cost-effective solution compared to other manufacturing methods. Additionally, zinc die-cast parts offer superior dimensional stability and durability, ensuring a high-quality end product with long-term reliability.

ConclusionIn summary, zinc die casting offers numerous benefits for the production of heat-exchanger shell housings. The process's precision, dimensional stability, and enhanced corrosion resistance make it the ideal choice for industrial and HVAC applications. Zinc die-cast parts deliver exceptional structural integrity, long-lasting performance, and cost-effectiveness, making them a preferred option for manufacturing heat-exchanger shell housings.
By choosing zinc die casting for heat-exchanger shell housing applications, manufacturers can benefit from the superior quality, reliability, and long-term durability of the final products. GW diecasting, with its expertise in zinc die casting, provides a robust and efficient solution for producing high-quality heat-exchanger shell housings that meet the demands of modern industrial and HVAC systems.

Zinc die casting has become one of the most reliable and cost-effective manufacturing processes in modern industries. From automotive components to electronics housings and appliance parts, zinc alloys provide manufacturers with a unique combination of strength, precision, and versatility. This guide explores the zinc die casting process, materials, benefits, challenges, and applications to help engineers, buyers, and manufacturers make informed decisions.

What Is Zinc Die Casting?Zinc die casting is a highly versatile and widely used manufacturing process that involves forcing molten zinc, or zinc alloys, into a steel mold cavity under high pressure. The mold, also known as a die, is precisely machined to create complex shapes with exceptional accuracy and repeatability. Once the molten zinc cools and solidifies, the die opens to release a part that often requires minimal machining or finishing. This process stands out in modern manufacturing because it combines strength, precision, and cost-effectiveness.
Due to zinc's low melting point and excellent flow characteristics, the die casting process can achieve tighter tolerances and longer tool life compared to aluminum or magnesium die casting. From small consumer electronics components to robust automotive and industrial parts, zinc die casting plays an essential role in numerous industries. Its unique combination of durability, dimensional stability, and design flexibility makes it one of the most reliable solutions for manufacturers seeking high-volume production with consistent quality.

The Zinc Die Casting ProcessThe zinc die casting process is a precise and efficient manufacturing method that transforms molten zinc into complex, high-quality components. It is widely valued for its ability to achieve tight tolerances and excellent surface finishes at scale. The process can be broken down into several key stages:

Mold Design and PreparationThe process begins with the creation of a die (mold), typically made from hardened tool steel. The mold is engineered with great accuracy to form the desired part geometry and includes multiple cavities, ejector pins, and cooling channels. Proper mold design is critical to ensure part quality, minimize defects, and extend the tool's lifespan.

Melting the Zinc AlloyZinc or zinc alloys are heated in a furnace until they reach their low melting temperature (around 380C / 716F). Compared to other metals, zinc melts quickly and flows easily, which reduces energy consumption and increases casting efficiency.

Injection of Molten ZincOnce molten, the zinc is injected under high pressure (typically between 1,000 and 20,000 psi) into the steel mold cavity. This ensures that the molten metal fills even the smallest and most intricate features of the mold, creating parts with fine details and thin walls.

Cooling and SolidificationAfter injection, the molten zinc cools rapidly inside the die. Zinc's excellent thermal conductivity allows for faster cooling compared to aluminum or magnesium, which not only shortens cycle times but also helps maintain dimensional stability.

Ejection of the CastingOnce solidified, ejector pins push the finished part out of the mold. At this stage, the part typically has a smooth surface finish and requires minimal post-processing.

Trimming and FinishingAny excess material, such as runners or flash, is trimmed away. Depending on the application, additional surface treatments such as plating, painting, or coating may be applied to enhance corrosion resistance or improve appearance.

Hot Chamber vs. Cold Chamber Zinc Die CastingZinc die casting can be performed using two methods:

Hot Chamber Die CastingThe injection mechanism is submerged in the molten zinc. This method is faster and highly efficient, making it the most common process for zinc. The hot chamber process involves a gooseneck that is submerged in the molten metal. Molten zinc automatically enters the shot chamber through a hole in the gooseneck, and a vertical plunger seals the hole, driving the metal into the die with high pressure. The part rapidly solidifies within seconds, and the part is ejected from the tool.

Cold Chamber Die CastingMolten zinc is ladled into the injection system from an external furnace. This method is used less frequently for zinc but may be applied in specific cases, such as when dealing with larger parts or when the part geometry is exceptionally complex.

Zinc Die Casting Materials (Alloys)Several zinc alloys are available, each with unique mechanical and physical properties.

Common Zinc AlloysZamak 2/Zinc Alloy 2/Kirksite: Strongest and hardest alloy; suitable for casting parts requiring high structural integrity, common in automotive and mechanical sectors.Zamak 3/Zinc Alloy 3: Popular for its superb dimensional stability and castability; compatible with painting, chromate treatments, and plating.Zamak 7: Modified Zamak 3 with a lower magnesium content and impurities; suitable for making parts that require high castability and surface finish.ZA 8: High aluminum content zinc-aluminum alloy compatible with hot-chamber die casting.ACuZinc5: Developed by General Motors, high hardness and lubricity, suitable for high-strength parts in hot conditions.EZAC: High creep resistance, high hardness, and high yield strength; compatible with hot-chamber die casting.ZA 27: Higher aluminum content than Zamak family; lightweight, strong, and durable; suitable for structural integrity parts.Choosing the Right AlloyChoosing the right zinc die cast material depends on performance needs such as corrosion resistance, dimensional stability, or cost efficiency. Different alloys offer varying levels of strength, ductility, and finishing options, allowing manufacturers to select the best fit for their applications.

Advantages of Zinc Die CastingZinc die casting offers several advantages, making it one of the most preferred manufacturing methods across industries due to its unique combination of mechanical performance, cost efficiency, and production versatility. Compared with other die casting metals such as aluminum or magnesium, zinc offers several distinct advantages that make it an excellent choice for both high-volume and precision applications.

Key AdvantagesLonger Tool Life: Mold used in zinc die casting can last about ten times the length of an aluminum die casting mold due to the zinc alloy's less abrasive and lower melting point.
Lower Tooling Costs: Reduced wear and tear on tools mean lower maintenance and replacement costs, making zinc die casting cost-effective for large production runs.
Precision and Thin Walls: Zinc alloys can create intricate geometries with thin walls that would be difficult or expensive to achieve with other metal forming methods.
Excellent Mechanical Properties: Zinc alloys offer superior strength, toughness, and dimensional stability, making them ideal for parts that require high performance.
Cast Complex Geometries: Zinc's excellent bearing and wear properties make it suitable for making parts with complex geometries and thin walls.
Faster Production: Zinc alloys have a lower melting point and require a hot chamber die casting process, which increases the cycle rate compared to aluminum. Zinc die casting has a higher cycle rate than aluminum (typically 150-200% higher), making it faster and more efficient.
Various Finishing Options: Zinc cast parts can be finished in various ways, such as plating, painting, or powder coating, to enhance corrosion resistance, appearance, and durability.

Disadvantages of Zinc Die CastingWhile zinc die casting offers numerous advantages, it also has certain limitations that manufacturers should consider when selecting the right material and process for their applications.

Key DisadvantagesProne to Defects: The high filling speed and rapid cooling can lead to gas discharge issues, resulting in defects such as pores or blisters, which can reduce part quality.
Heavy Parts: Zinc die casting is stronger but heavier than aluminum, making it unsuitable for lightweight applications. This limits its use in industries where weight is a critical concern, such as aerospace.
Not Suitable for Small-Batch Production: Die casting has a high initial investment cost, making it more suitable for mass production. For small-batch production, other methods may be more cost-effective.

Applications of Zinc Die Casting ComponentsZinc die casting components are widely used across various industries due to their strength, precision, and versatility. The ability to produce complex shapes, fine details, and durable parts makes zinc die casting ideal for both consumer and industrial applications.

Automotive IndustryZinc die casting is extensively used in the automotive sector for producing parts that require strength, wear resistance, and precision.

Door Handles and Locks: Ensures high repeatability and tight tolerances, essential for safety-critical automotive parts.Engine Brackets and Housings: Critical components for engine efficiency and durability.Gear Components: Gear parts that require high strength and precision.Electrical Connectors and Sensors: Small, precise components that ensure reliable electrical connections.Interior and Exterior Trim Components: Lightweight and durable trim parts that enhance the aesthetics and functionality of vehicles.Consumer ElectronicsZinc die casting allows the production of lightweight yet durable housings and internal components for consumer electronics.

Smartphone and Tablet Frames: Lightweight, durable, and precision-molded frames for electronic devices.Camera Housings and Lens Mounts: Parts that require fine details and protective housing.Audio Equipment Enclosures: Lightweight and durable enclosures for audio devices.Computer Connectors and Brackets: Components that require dimensional accuracy and durability.Industrial Equipment and MachineryZinc die cast components are widely used in industrial machinery due to their durability and precision.

Gear Housings and Machine Brackets: Parts that require high strength and durability.Valve Components: Components that need to withstand high pressure and cyclic loading.Small Motors and Pump Parts: Precision-molded parts for small motors and pumps.Tooling and Mechanical Linkages: Components that require high strength and precision.Hardware and Lock SystemsZinc die casting is a top choice for locks, handles, and fasteners thanks to its strength, corrosion resistance, and ability to produce intricate designs.

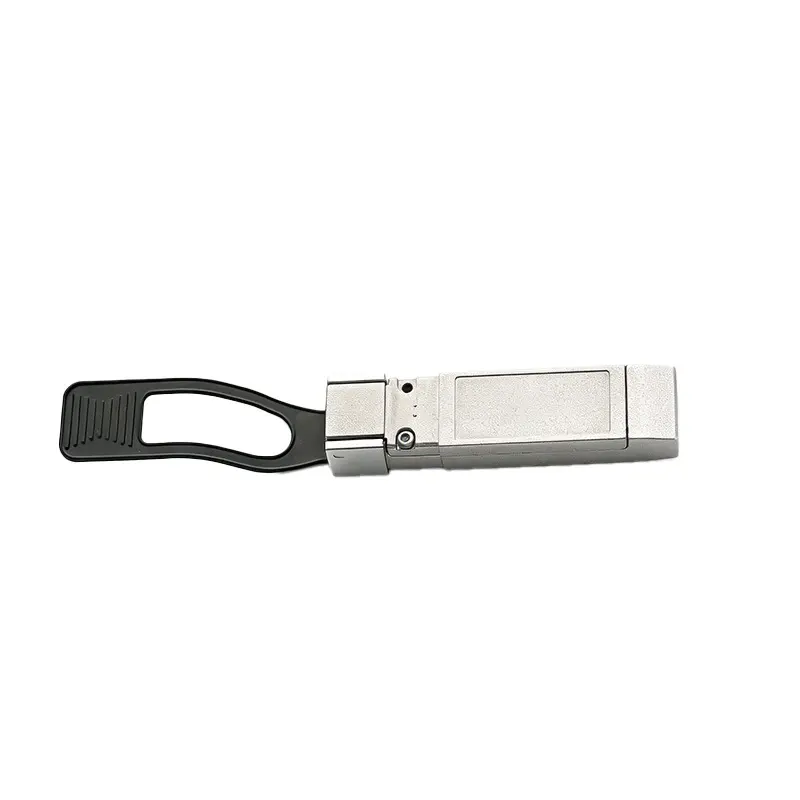

Door and Window Locks: Parts that require high strength and anti-drill protection.Cabinet Handles and Latches: Components that need durability and precise fit.Hinges and Fasteners: Parts that require high strength and longevity.Electrical and Connector ComponentsZinc die casting is commonly used for electrical connectors and components because of its dimensional accuracy and durability.

Switch Housings: Enclosures for electrical switches that require precise fit and durability.Connector Shells: Components that need to withstand various environmental conditions.Circuit Breaker Components: Parts that require high strength and precise dimensions.Other ApplicationsOther industries also benefit from zinc die casting for small, precise, or decorative parts:

Medical Devices: Casings and instrument components that require high precision and sterility.Robotics: Brackets, joints, and gears that require high precision and durability.Aerospace (non-structural parts): Housings and control components that need to be lightweight and durable.Coating and Surface Finishing for Zinc Die Cast PartsAfter zinc die casting, surface finishing and coating are often applied to enhance corrosion resistance, appearance, and durability. The excellent dimensional stability of zinc parts allows them to undergo various finishing processes without compromising precision. Selecting the right surface treatment depends on the part's function, environment, and aesthetic requirements.

Common Coating and Surface Finishing MethodsPlating: Methods such as chrome plating, nickel plating, and zinc plating can enhance corrosion resistance and provide a decorative finish.Painting: Can be used to improve corrosion resistance and provide a durable, uniform finish.Powder Coating: Offers a durable and uniform surface finish, resistant to corrosion and abrasion.Mechanical Plating: A dry process that deposits metallic coatings without the use of wet chemistry.Anodizing: Creates a protective oxide layer on the surface, enhancing corrosion resistance.Benefits of Surface Finishing for Zinc Die Cast PartsEnhanced Corrosion Resistance: Protects parts from rust and environmental degradation.Improved Wear Resistance: Extends component life in high-friction or load-bearing applications.Aesthetic Enhancement: Achieves smooth, polished, or decorative finishes.Compatibility with Secondary Processes: Prepares parts for assembly, bonding, or additional coating.Zinc Die Casting vs. Aluminum Die CastingZinc and aluminum are two of the most widely used metals in die casting. While both processes share similarities, each metal offers unique advantages and limitations that affect performance, cost, and suitability for specific applications. Understanding the differences helps manufacturers choose the optimal material for their parts.

Key DifferencesWeight: Aluminum is lighter than zinc, making it more suitable for lightweight applications.Melting Point: Zinc has a lower melting point, making it more energy-efficient and faster to process.Mechanical Properties: Zinc has higher yield strength and elongation compared to aluminum.Thermal Conductivity: Zinc has higher thermal conductivity, facilitating faster cooling and solidification.Surface Finish: Zinc provides better surface finishes and is more suitable for decorative applications.Tool Life: Zinc die casting molds last longer than aluminum molds due to lower abrasive properties.SummaryChoose Zinc Die Casting for:
High-precision, small to medium partsComplex geometries with thin wallsDecorative or plated componentsApplications requiring superior strength and impact resistanceChoose Aluminum Die Casting for:
Lightweight parts or large componentsHigh-temperature applicationsAutomotive and aerospace structural componentsIn short, zinc die casting excels in precision, strength, and decorative finishes, while aluminum die casting is preferred for lightweight and high-temperature applications. Selecting the right material depends on part requirements, cost considerations, and functional demands.

Zinc Die Casting Industry and SustainabilityThe zinc die casting industry plays a vital role in modern manufacturing, supplying high-quality parts to various sectors. As sustainability becomes increasingly important, zinc die casting offers several environmental benefits and can be part of a sustainable manufacturing process.
Resource Efficiency: Zinc die casting reduces material waste due to its net-shape manufacturing capabilities, minimizing scrap and rework.Energy Efficiency: Lower melting temperatures and faster cycle times translate to reduced energy consumption compared to other metals.Recyclability: Zinc alloys can be recycled and reused multiple times, reducing waste and environmental impact.GW Diecasting, a leading manufacturer of zinc die cast components, is committed to sustainable practices and quality standards. Our expertise in zinc die casting helps our clients achieve high-volume production with consistent quality while minimizing their environmental footprint.

ConclusionZinc die casting is a versatile and reliable manufacturing process that offers numerous benefits, making it one of the most preferred methods for producing high-quality parts. Its precision, strength, cost-effectiveness, and production versatility make it an ideal choice for various industries, from automotive and electronics to hardware and medical devices.
GW Diecasting, with its expertise in zinc die casting, stands as a trusted partner for manufacturers seeking high-quality components. Our commitment to precision and sustainability ensures that we provide reliable solutions that meet your needs while supporting a greener future.
If you are in the market for zinc die cast components, we invite you to explore our services and products. Contact our team to discuss your specific requirements and how we can help you achieve your manufacturing goals.
By providing comprehensive information and highlighting the unique benefits of zinc die casting, this article serves as a valuable resource for manufacturers, engineers, and buyers. It outlines the process, advantages, applications, and sustainability aspects of zinc die casting, making it easier for professionals to make informed decisions.
GW Diecasting, as a leading provider of zinc die casting services, is dedicated to delivering high-quality components that meet the demands of various industries while maintaining the highest standards of quality and sustainability. Whether you are producing automotive parts, consumer electronics, industrial equipment, or hardware components, our team is ready to support your manufacturing needs.
For more information, visit our website or contact our engineering team to discuss your specific requirements and how we can help you achieve your goals.

In the fast-paced world of food processing, ensuring safety, efficiency, and compliance with industry standards is paramount. One often-overlooked component that plays a critical role in these requirements is the electrical junction box. As washdowns are a routine part of maintaining cleanliness and hygiene in food facilities, the choice of materials for junction boxes becomes a crucial consideration. Our article, “Electrical Junction Boxes Metal Sourcing for Food Processing Washdowns,” dives deep into the essential aspects of selecting the right metal for these junction boxes, taking into account factors like corrosion resistance, durability, and regulatory compliance. Explore how the right sourcing decisions can not only enhance operational efficiency but also safeguard food safety in your facility. Join us as we uncover the nuances of metal sourcing and provide insights to help you navigate this critical aspect of food processing equipment. Don't miss out – your next step to an optimized, compliant, and safer food processing environment starts here!

1. Introduction: Strict Hygiene Sanitation Realities on Food Production Lines 2. Zero-Porosity Casting: Eliminating Bacterial Breeding Micro-Pits 3. Cleaning Resistance: Survival Under Daily Hot Chemical Wash Streams 4. Drainage Contours: Removing Flat Standing Water Zones on Outer Shells 5. Sourcing Approvals: Verifying Food-Grade Coating Material Certificates
1. Strict Hygiene Sanitation Realities on Food Production Lines

In the food processing industry, hygiene standards are paramount. As production lines come into contact with various food products, they also face the risk of contamination. Electrical junction boxes, an often-overlooked component, must be meticulously designed to meet stringent hygiene requirements. This involves more than simply protecting electrical circuits; it necessitates ensuring that these enclosures can withstand rigorous cleaning processes and do not harbor bacteria or contaminants. The realities of food processing sanitation require that the materials used for electrical junction boxes be not only functional but also hygienic.

2. Zero-Porosity Casting: Eliminating Bacterial Breeding Micro-Pits

One of the most critical features of electrical junction boxes in food production environments is their material integrity. The concept of zero-porosity casting is essential in this context, as it creates dense, defect-free metal surfaces that actively deter bacterial growth. Traditional casting methods can leave micro-pits—tiny imperfections that become breeding grounds for bacteria. To combat this, advanced zero-porosity techniques are employed, resulting in smooth and seamless metal surfaces that greatly reduce the risk of contamination. This solid foundation is vital for maintaining the strict hygiene standards demanded in food processing settings.

3. Cleaning Resistance: Survival Under Daily Hot Chemical Wash Streams

The food production environment is characterized by constant cleaning routines using powerful detergents and sanitizing agents. Electrical junction boxes must be constructed from materials that resist degradation under exposure to these harsh conditions. This cleaning resistance is vital since daily hot chemical wash streams not only pose risks of corrosion but can also lead to surface oxidation and pitting, creating vulnerabilities that increase the likelihood of bacterial proliferation. By utilizing specially treated metals that resist the effects of nitric sanitizers, manufacturers can ensure that electrical junction boxes stand up to the rigors of daily maintenance without compromising their structural integrity or hygiene.

4. Drainage Contours: Removing Flat Standing Water Zones on Outer Shells

Design plays a crucial role in the hygiene of electrical junction boxes. The shape and contour of these enclosures can significantly impact their performance during washdowns. Designing sloped external shapes helps to naturally shed high-pressure water, preventing flat standing water zones that can collect dirt and create an environment conducive to bacterial growth. Effective drainage contours are not merely aesthetic; they function as a crucial component in maintaining cleanliness and sanitizing efficacy. This consideration in design ensures that any water or cleaning solution efficiently drains away, leaving the surface dry and less prone to contamination.

5. Sourcing Approvals: Verifying Food-Grade Coating Material Certificates

In the quest for compliance with food safety regulations, sourcing electrical junction boxes made from hygienic metal casing is only half the battle. The coatings applied to these materials must also be meticulously sourced and verified for safety. FDA-compliant non-toxic powder finishes are essential to avoid leaching harmful substances into food products. Manufacturers must not only focus on the raw materials but also ensure that every layer of the junction box, including any coatings or finishes, passes regulatory inspections. This extends the hygiene commitment throughout the entire assembly process, confirming that every component adheres to food safety standards.

Overall, sourcing electrical junction box metal for food processing washdowns necessitates an intricate understanding of hygiene practices and material science. Each aspect, from the casting process to the final coating, must be carefully considered to ensure compliance with industry standards. By embracing innovations like zero-porosity casting, prioritizing designs that shed water, and sourcing materials that withstand aggressive cleaning regimens, manufacturers can create effective, hygienic environments that safeguard food safety. This meticulous attention to detail not only protects consumers but also fortifies a company’s reputation in an industry where trust is paramount.

Conclusion
In conclusion, as we reflect on the critical role that metal junction boxes play in the efficient and safe operation of food processing facilities, it's clear that thoughtful sourcing is paramount. With 17 years of experience in the industry, we understand the unique challenges presented by washdown environments, where durability and compliance with hygiene standards are non-negotiable. Our commitment to providing high-quality, robust electrical junction boxes ensures that your operations remain uninterrupted and compliant, ultimately enhancing your productivity and safety. As we continue to innovate and improve our offerings, we invite you to partner with us in achieving the highest standards in food processing. Together, we can ensure that your facility not only meets regulatory requirements but also operates with optimal efficiency and reliability in the face of demanding washdown conditions. Let’s forge ahead—ensuring safety and performance are met at every junction.

In the rapidly evolving world of healthcare, the design of medical equipment plays a crucial role in ensuring efficiency, safety, and effectiveness. One vital component often overlooked in this intricate process is the enclosure that houses these complex devices. Our latest article, “Designing Custom Aluminum Enclosures for Heavy Medical Equipment,” delves into the innovative world of custom enclosure design, highlighting how tailored aluminum solutions can enhance functionality, durability, and aesthetics of medical devices. Discover how the right enclosure not only protects sensitive equipment but also meets stringent medical regulations and improves user experience. Join us as we explore the key considerations, benefits, and cutting-edge techniques behind creating the perfect enclosure for heavy medical machinery, ensuring it stands strong in the face of rigorous demands while delivering exceptional performance. Read on to uncover the future of medical equipment design!

1. Introduction: Strict Regulatory and Structural Demands of Medical Environments 2. Structural Integrity: Supporting Heavy Power Supplies and Isolation Transformers 3. Biological Compatibility: Selecting Finishes That Resist Harsh Hospital Disinfectants 4. Radiation & EMI Protection: Guarding Sensitive Internal Diagnostics Circuits 5. Sourcing Guidelines for ISO 13485 Certified Medical Component Foundries
1. Strict Regulatory and Structural Demands of Medical Environments

In the intricate world of healthcare, the equipment utilized must not only deliver high performance but also adhere to stringent regulations and structural requirements. Custom aluminum enclosures designed for medical equipment need to meet specifics for patient safety, operational efficacy, and compliance with regulatory bodies. The challenges posed by heavy medical gear such as imaging machines, surgical robots, and power supplies necessitate enclosures that ensure durability and reliability while also passing rigorous hygiene and safety tests. As we dive into the imperatives for designing these enclosures, it becomes evident that careful consideration of structural integrity, biological compatibility, electromagnetic interference (EMI) protection, and sourcing from ISO 13485 certified partners are paramount.

2. Structural Integrity: Supporting Heavy Power Supplies and Isolation Transformers

The primary function of custom aluminum enclosures is to provide robust support for heavy medical equipment components. To prevent frame bending under the weight of heavy power supplies and isolation transformers, maximizing load-bearing wall properties is crucial. Utilizing thicker aluminum sheets, along with a designed-in framework that distributes weight evenly, can enhance the overall structural integrity of the enclosure. Additionally, integrating reinforced corners and strategically placed reinforcements can help withstand the significant stresses inherent in medical environments. These designs not only ensure longevity but also help in mitigating vibrations that can disrupt sensitive machinery, ensuring that the equipment functions optimally.

3. Biological Compatibility: Selecting Finishes That Resist Harsh Hospital Disinfectants

An equally critical aspect in the design of custom aluminum enclosures is biological compatibility. Medical environments are subject to frequent sanitization efforts, and the materials used must be resistant to harsh hospital disinfectants. An effective strategy for achieving this is through the selection of antimicrobial powder coat finishes, which can provide an additional layer of protection against microbial growth. This selection ensures that the enclosures can withstand common cleaning agents such as bleach and alcohol, without degrading the surface or losing aesthetic appeal. Furthermore, these finishes must pass stringent hospital hygiene sanitization tests to ensure compliance and safety in clinical settings, contributing to a healthy environment for both staff and patients.

4. Radiation & EMI Protection: Guarding Sensitive Internal Diagnostics Circuits

In within the confines of a medical facility, electromagnetic interference (EMI) poses a significant challenge, particularly for equipment relying on sensitive internal diagnostics circuits. Custom aluminum enclosures can be designed with monolithic thick-walled shielding to effectively eliminate EMI and ensure uninterrupted function of these circuits. Implementing proper shielding techniques not only protects the equipment but also reduces noise interference that can affect the accuracy and reliability of medical diagnostics. Engineers must consider the frequency ranges that may cause disruptions and tailor the enclosure design to counteract these potential issues, employing materials and layouts that create effective barriers against unwanted signals.

5. Sourcing Guidelines for ISO 13485 Certified Medical Component Foundries

To guarantee that the custom aluminum enclosures meet all necessary regulatory requirements, it is essential to source components and services from ISO 13485 certified medical component foundries. This certification guarantees compliance with international standards for quality management systems specifically in the medical device industry. When vetting manufacturing supply partners, it is critical to evaluate their adherence to strict documentation and traceability protocols throughout the production processes. This focus on quality assurance not only ensures that the end product conforms to regulatory standards but also fosters trust in the performance and reliability of the medical equipment housed within these enclosures.

In conclusion, designing custom aluminum enclosures for heavy medical equipment encompasses a multifaceted approach that balances structural, biological, and regulatory challenges. By combining advanced engineering techniques with high-quality materials and strict adherence to compliance protocols, manufacturers can create enclosures that enhance both the functionality and safety of medical devices in hospital settings. The emphasis on load-bearing integrity, compatibility with sanitization practices, robust EMI shielding, and thorough sourcing from certified component suppliers is the foundation of creating effective, safe, and reliable medical equipment chassis in a demanding industry.

Conclusion
In conclusion, the process of designing custom aluminum enclosures for heavy medical equipment is not merely a technical endeavor; it is a commitment to enhancing the safety, functionality, and efficiency of vital healthcare technology. With 17 years of experience in the industry, our expertise allows us to understand the unique challenges and requirements faced by medical professionals and manufacturers alike. Our innovative designs not only provide robust protection for sensitive equipment but also ensure compliance with stringent industry standards. As we look to the future, our dedication to quality and collaboration will continue to drive our mission, enabling us to support the ever-evolving landscape of healthcare technology. Together, we can ensure that medical equipment is not only functional but also secure, efficient, and tailored to meet the needs of today’s healthcare environments.

In the rapidly evolving world of electrical engineering, high-voltage systems pose unique challenges and risks that demand innovative solutions. Enter die-cast electrical wire enclosures—a cutting-edge advancement that promises not only enhanced protection but also improved performance and longevity of critical systems. In our comprehensive article titled “Shielding High-Voltage Systems with Die-Cast Electrical Wire Enclosures,” we delve into the transformative benefits of these robust enclosures and how they can revolutionize the safety and efficiency of high-voltage installations. Discover how these engineered solutions provide unparalleled shielding against environmental hazards, reduce maintenance costs, and ensure compliance with stringent safety standards. Whether you're a seasoned engineer or simply seeking to broaden your understanding of electrical safety technologies, this article is your gateway to exploring the future of high-voltage system protection. Read on to uncover the essential insights that could reshape your approach to electrical safety!

1. Introduction: Electromagnetic Isolation Needs in Heavy EV Platforms 2. Inherent Magnetic Shielding: Wall Thickness vs. Emission Frequencies 3. Labyrinth Joint Mechanics: Eradicating Stray Signal Leak Paths 4. Surface Treatments: Insulating Conductive Ground Tracks Safely 5. Compliance Verification: Passing Strict Regulatory Noise Filters
1. Electromagnetic Isolation Needs in Heavy EV Platforms

In the evolving landscape of electric vehicles (EVs), electromagnetic isolation has become a pivotal concern, especially in heavy EV platforms where high-voltage systems are prevalent. As manufacturers strive to enhance the efficiency and reliability of their powertrains, the need for effective electrical wire enclosures has surged. The main objective is to shield high-voltage components from undesired electromagnetic emissions that may interfere with sensitive low-amp signals. This isolation not only protects critical systems from electromagnetic interference (EMI) but also ensures the safety and reliability of the EV's overall performance.

2. Inherent Magnetic Shielding: Wall Thickness vs. Emission Frequencies

A primary consideration when designing electrical wire enclosures is the wall thickness of the enclosure materials, which plays a crucial role in inherent magnetic shielding. Thicker walls generally provide better attenuation of electromagnetic emissions, particularly at lower frequencies where the field strength is more pronounced. However, as frequency increases, other factors such as material composition and the geometry of the enclosure come into play.

Dense solid cast frames emerge as superior alternatives to leaky stamped sheet metals. The homogenous structure of a die-cast frame offers not only increased durability but also more effective magnetic shielding properties. By utilizing advanced materials and optimizing wall thickness, manufacturers can create enclosures that effectively isolate high-voltage drive lines from neighboring electronics, mitigating the risk of signal degradation and ensuring seamless operation of the powertrain.

3. Labyrinth Joint Mechanics: Eradicating Stray Signal Leak Paths

To further bolster the shielding capabilities of high-voltage systems, incorporating labyrinth joint mechanics is vital. These joints create intentional obstructions to stray signal pathways, effectively eradicating leakage points where electromagnetic emissions can escape. The complexity of these joints reduces the potential for signal interference by forcing any stray emissions to navigate a longer path, facilitating attenuation.

As part of the design process, it is essential to engineer these labyrinth joints to maximize surface contact and minimize gaps. This requires careful measurement and machining to ensure that the mechanical fit is secure and that the joints maintain the structural integrity of the enclosure. The resulting configuration not only enhances the EMI shielding but also supports the overall robustness of the high-voltage system’s encapsulation.

4. Surface Treatments: Insulating Conductive Ground Tracks Safely

While mechanical designs and wall thickness are critical to high-voltage shielding, surface treatments are equally important. Specifically, chemical conversion coatings can enhance the connectivity and functionality of surface-to-surface contacts, ensuring electrical grounding while preventing corrosion. These treatments provide a clean, conductive layer that helps maintain the integrity of ground tracks without compromising the overall EMI performance of the enclosure.

Through processes that adhere to stringent automotive specifications, these surface treatments facilitate safe and durable connections in high-voltage systems. Furthermore, they contribute to meeting EV powertrain noise reduction target metrics, which are crucial for compliance with regulatory noise filters. The synergy between mechanical and chemical designs transforms an electrical wire enclosure into a formidable barrier against electromagnetic emissions.

5. Compliance Verification: Passing Strict Regulatory Noise Filters

The final stage in the design and implementation of high-voltage shielding involves compliance verification. Automotive standards in the EV sector dictate rigorous noise and interference limits, pushing manufacturers to ensure that their shielding solutions meet strict regulatory noise filters. Adhering to these guidelines is paramount in the quest for not only excellent performance but also consumer trust and environmental safety.

Rigorous testing protocols must be established from initial designs through to the final product, ensuring that all electrical wire enclosures withstand real-world conditions while providing the necessary protection against electromagnetic emissions. By validating the efficacy of advanced shielding techniques—such as wall thickness optimization and labyrinth joint designs—manufacturers can confidently deliver high-performance electric vehicles that resonate with market demands and regulatory requirements.

In conclusion, the intricate interplay of design principles that incorporate high-voltage shielding solutions is central to advancing heavy EV platforms. By prioritizing factors such as electromagnetic emissions casing, mechanical robustness, and regulatory compliance, automotive engineers can create reliable and efficient powertrain systems that meet the modern demands of the evolving electric vehicle landscape.

Conclusion
In conclusion, as a company with 17 years of experience in the industry, we have witnessed firsthand the transformative power of effective shielding solutions in high-voltage systems. Die-cast electrical wire enclosures stand out as a gold standard in providing robust protection against electrical interference, environmental factors, and mechanical stress. Our ongoing commitment to innovation and quality has solidified our reputation as trusted experts in this field, empowering clients to enhance safety and efficiency. As technology continues to evolve, we remain dedicated to adapting our offerings to meet the needs of a dynamic market. By choosing die-cast enclosures, you’re not only investing in superior protection but also partnering with a company that prioritizes your success and safety. Together, let’s safeguard the future of high-voltage systems, ensuring they operate seamlessly and reliably in all conditions.
